Deep Pleat HEPA [H10-H14]
Our HEPA (High Efficiency Particulate Air) filter is constructed from high quality wet laid micro-glass media and uses corrugated aluminum separators. The pleat pitch is designed for minimum air flow resistance and the spacer edges are 'safety rolled' to prevent media puncture. The filter is sealed to the frame with a two - part spongy PU resin to ensure zero leakage and zero transit damage.
Boons
- AFi's Deep Pleat HEPA achieves the up to 30% lower pressure drop than other available HEPA filters in the market.
- Robust construction
- Standard and High Capacity versions available
- Controlled laminar flow
- HEPA filters are offered as per IES-RP-CC001.3
Usage Zone
- Used as a final stage filter in air intake systems
- Gas Turbine, Turbo Machinery, Compressors & Engines

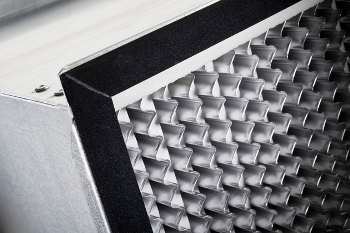

![Deep Pleat HEPA [H10-H14]](manage/product_images/HepaFilter-f9cb32a66c538dc82de2f8818b638086-large.jpg "Deep Pleat HEPA [H10-H14]")
| Test Standard | EN1822 |
| Available Grades | H10 - H14 |
| Available Efficiencies | 98% - 99.99% |
For Detailed Product Brochure, Performance Data Sheet & TDS/ Drawings- Please Contact Us
